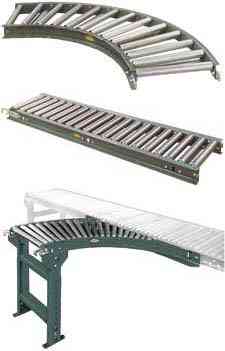

• Hytrol Gravity Roller Conveyor



  Light Duty Gravity Roller Conveyor

  • Straight, curve, and spur sections.
  • Overall widths: 12", 15", 18", & 24".
  • Rollers: 1-3/8"dia. x 18ga.; tapered tubes available.
  • Frame: powder painted steel or aluminum.
  • Lengths: 5ft & 10ft.
  • Curves: 30º, 45º, 60º, and 90º.
  • Spurs: 30º, 45º, 90º angles; left or right hand.
  • Couplings: hook and bolt.
  • 24-hour stockyard availability (contact for sizes available) for straights and curves.

  Gravity Roller Conveyor

  • Straight, curve, and spur sections.
  • Widths (between rail): range between 13" to 55" depending on roller size.
  • Rollers: 1.9"dia. x 16ga., 1.9"dia. x 9ga., 2.0"dia. x 12ga., 2-1/2"dia. x 14ga., 2-1/2"dia. x 11ga., 2-5/8"dia. x 7ga.
  • Frame: powder painted steel.
  • Lengths: 5ft & 10ft.
  • Curves: 30º, 45º, 60º, and 90º.
  • Spurs: 30º, 45º, 90º angles; left or right hand.
  • 24-hour stockyard availability (contact for sizes available) for straights and curves.

  Heavy Duty Roller Conveyor

  • Widths (between rail, straights): 7", 11", 15", 19", 23", 27", 31", 35", 39", 43", 47", & 51".
  • Widths (between rail, curve): 19", 21", 23", 25", 27", 31", 33", 37", 39", 43", 47", & 51".
  • Rollers (straight): 3-1/2"dia. x 9ga., 3-1/2"dia x .300ga.
  • Rollers (curve): 2-1/2"dia tapered.
  • Frame: powder painted steel.
  • Lengths: 5ft & 10ft.
  • Curves: 30º, 45º, 60º, and 90º.

  For heavy loads such as pallets, castings etc. in steel industries and other manufacturing operations which require heavy-duty equipment.

  Gravity roller conveyor is used to convey packages on permanent or temporary lines in warehousing activities, shipping department, assembly areas, etc. Majority of products will convey with a minimum amount of pitch.

  Gravity roller curves add to the versatility of straight conveyors. Curves provide smooth product flow through turns, and will convey products with minimum amount of pitch based on weight and size. Tapered rollers will maintain better product orientation through the curve. Guard rails may be added for product protection.

  Gravity roller spurs are used to transfer products from one conveying line onto another. They can be used in merging or diverging applications. Ideally used where numerous lines must transfer onto a main conveyor line, from work stations or other similar operations.

• Hytrol-Model “CCAC” Case Conveyor Curve (Air)



  The model CCAC is a horizontal plastic belt curve conveyor which is normally slave driven from the model CCEZ for accumulating 12 & 24 packs of canned beverages where high speeds and large through-puts are required.

  • Frame: 13" deep x 1-1/2" flange x 12 ga. steel side channels, powder painted.
  • Drive: slave driven from infeed end of model CCEZ.
  • Air requirements: recommended working pressure 60 p.s.i.

• Hytrol-Model “CCEZ” Case Conveyor (Air)



  The model CCEZ is a horizontal plastic belt conveyor designed for accumulating 12 & 24 packs of canned beverages where high speeds and large through-puts are required. Shown with optional floor supports.

  • Bed: 13" deep x 1-1/2" flange x 12 ga. formed, powder painted steel frame.
  • Belt: 6" wide x 1/2" thick low friction plastic belt (4-1/2" wide available).
  • Motor: 1 HP 230/460/3 EE with AC variable speed controller.
  • Adjustable floor supports available.
  • Accumulation zones: 24" long air controlled.
  • EZLogic accumulation module located in each zone.

• Magnetic Belt Conveyor



  We design and manufacture magnetic conveyors for applications where additional product stability is necessary. We can even convey your product vertically or upside down. For ferrous parts such as containers.

  • Fully automatic operation.
  • Magnetic moving conveyor surface will positively grip ferrous products.
  • Continuous and smooth side transfer to and from the production line.
  • Air blast can cleaning systems available.

• Manual Drawer Organizer



  Our sheet metal organizer drawer is the perfect way to store all types of sheet metals. All of your materials can be neatly and conveniently stored flat in a space-saving drawer format - where they'll be easy to find when needed. This is the best way to store sheet materials, especially various thicknesses.

  • Available for 4'x8' and 5'x12' sheet sizes.
  • Each drawer can hold 2500 lb.
  • Up to 8 pull out drawers per organizer (depending on amount of material to store).
  • Each drawer can be labelled with type of material.
  • Easy access by forklift, plus drawers can be opened manually and unloaded by vacuum lifter.
