• Hytrol – ProSort SRT



  The model ProSort SRT is a sorter for small to medium sized items. Product is transported on multiple narrow belts. Rollers pop up between the belts to transfer items at right angles to the sorter.

  • Right angle transfer.
  • Two-sided transfer.
  • High sort rates.
  • Close transfer locations.
  • Flexible sort locations.
  • Capacity: 20 lbs max unit package weight.
  • Package size: 4" x 4" minimum with 24" max length.
  • Adjustable floor supports available.

• Hytrol – Pushers


  • Light Duty Pusher.
  • High Speed Pusher.
  • Overhead Pusher.

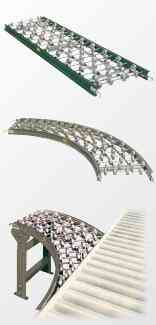

• Hytrol – Skatewheel Conveyor



  Gravity skatewheel conveyor is ideally used to convey lightweight packages or when operation requires lightweight sections. Skatewheel is useful in setting up temporary conveyor lines in warehousing activities, shipping departments, assembly areas, etc.

  Gravity skatewheel curves add to the versatility of straight conveyors and provide excellent package orientation because of the differential action of the wheels. Curves will convey product with minimum amount of pitch based on weight and size.

  Gravity skatewheel spurs are used to transfer products from one conveying line to another. They can be used in merging or diverging applications. They are ideally used where numerous lines must transfer onto a main conveyor line from work stations or other similar operations.

  • Overall widths: 12", 15", 18", & 24".
  • Frame: powder painted steel or aluminum.
  • Wheels: corrosion resistant aluminum or zinc-coated steel.
  • Straight sections: 5 ft & 10 ft lengths.
  • Curves: 30º, 45º, 60º, and 90º.
  • Spurs: 30º, 45º, 90º angles; left or right hand.
  • 24-hour stockyard availability (contact for sizes available) for straights and curves.

• Hytrol – Spring Balanced Gate



  Spring balanced gates can be used with several types of gravity wheel and roller conveyor. Gates provide a passageway for personnel, lift trucks, and other equipment. Tension springs are easily adjusted to provide minimum weight lift. Photo shown is spring balanced gate for 1.9"dia roller conveyor.

  • Skatewheel and 1-3/8"dia roller:
  • Widths (overall): 12", 15", 18", & 24".
  • Frame: 12ga galvanized steel or 0.125" aluminum.
  • Can be attached to 138-ACC conveyor.
  • 1.9"dia and 2"dia roller:
  • Widths (overall): 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42".
  • Rollers: 1.9" galvanized, unplated or aluminum; or 2" unplated.
  • Frame: 10ga powder painted steel.
  • Can be attached to 190-LR, 190-ACC, and 190-ACZ conveyors.
  • Lengths: 4ft and 5ft.
  • HD compression springs.
  • Safety gate latch.
  • Max width and length determined by roller centers and type or roller.
  • Lift handles on both sides.
  • Floor supports available.
  • 24-hour stockyard availability (contact for sizes available).

• Hytrol – Stops


  • Foot Operated
  • Blade/Roller Package Stops.
  • Hand Operated
  • Blade/Roller Package Stops.
  • Dead Type Package Stops.
  • Air Operated Roller Stops.
  • Angle End Package Stops.
  • Raised End Roller Package Stops.
