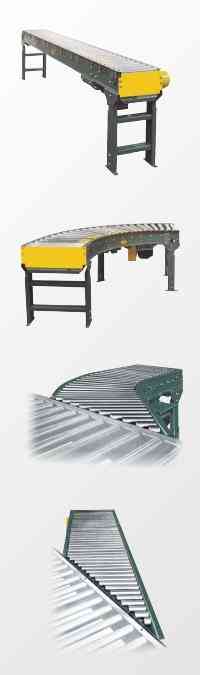

  • Hytrol – Model 138-ACC/-LRC/-LRCT/-LRS/-LRSS Light Duty

    The simplest method ever devised for accumulating cartons, boxes, etc. Basic design eliminates complicated adjustments and allows a minimum of 2% back pressure. 138-ACC and 190-ACC.

    The live roller curves provide a positive drive for negotiating 30º, 45º, 60º, and 90ºturns. They may be self powered or can be slave driven from ACC, LRS or LRSS conveyors. 138-LRC, 138-LRCT, and 190-LRC.

    The live roller spur conveyors are used in diverging or converging applications. They may be self-powered or can be slave driven from ACC or LRC conveyors. These models available in 30º and 45º spurs, right or left hand. Curved (138-LRS and 190-LRS) or straight (138-LRSS and 190-LRSS).

    • Bed: 6-1/2" x 12ga formed steel, powder painted.
    • Widths (overall): 12", 15", 18", & 24".
    • Rollers (galvanized):
    • ACC/LRSS: 1-3/8"dia x 18 ga straight rollers.
    • LRC/LRCT/LRS: varies (may be all straight, or straight and tapered combination).
    • Motor:
    • ACC/LRC/LRCT: 1/2 HP standard, 1 HP max.
    • LRS/LRSS: 1/2 HP max.
    • Capacity:
    • ACC: 50 lbs max load per linear foot, not to exceed rated capacities.
    • LRC/LRCT/LRS/LRSS: 150 lbs distributed load.
    • Reversible.
    • Adjustable floor supports available.
    • 24 hour stockyard availability (contact for sizes available) for ACC and LRC.

  • Hytrol – Model 190-ACC/-LRC/-LRS/-LRSS Medium Duty

    The simplest method ever devised for accumulating cartons, boxes, etc. Basic design eliminates complicated adjustments and allows a minimum of 2% back pressure. 138-ACC and 190-ACC.

    The live roller curves provide a positive drive for negotiating 30º, 45º, 60º, and 90ºturns. They may be self powered or can be slave driven from ACC, LRS or LRSS conveyors. 138-LRC, 138-LRCT, and 190-LRC.

    The live roller spur conveyors are used in diverging or converging applications. They may be self-powered or can be slave driven from ACC or LRC conveyors. These models available in 30º and 45º spurs, right or left hand. Curved (138-LRS and 190-LRS) or straight (138-LRSS and 190-LRSS).

    • Bed: 6-1/2" x 12ga formed steel, powder painted.
    • Widths (overall): 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42".
    • Rollers (galvanized):
    • ACC/LRSS: 1.9"dia x 16ga straight rollers.
    • LRC/LRS: 1.9"dia x 16ga straight, and 2-1/2”dia to 1-11/16”dia x 16ga tapered.
    • Motor:
    • ACC: 1/2 HP standard, 2 HP max.
    • LRC/LRS/LRSS: 1/2 HP standard, 1 HP max.
    • Capacity:
    • ACC: 150 lbs max load per linear foot, not to exceed rated capacities.
    • LRC/LRS/LRSS: 500 lbs distributed load.
    • Reversible.
    • Adjustable floor supports available.
    • 24 hour stockyard availability (contact for sizes available) for ACC and LRC.

  • Hytrol – Model 190-LR/-ACZ Medium Duty

    The model 190-LR is a flat belt driven live roller conveyor designed to transport medium to heavy cartons. Applications vary from manufacturing to distribution operations.

    The model 190-ACZ accumulates cartons, boxes, etc. Basic design eliminates complicated adjustments and allows a minimum of 2% back pressure.

    • Bed: 6-1/2" x 12ga formed steel, powder painted.
    • Rollers: 1.9"dia x 16ga galvanized rollers.
    • Widths (overall): 16", 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42".
    • Motor: 1/2 HP standard, 2 HP max.
    • Center drive standard.
    • Reversible.
    • Capacity (max load per linear foot): 200 lbs, not to exceed rated capacities.
    • Adjustable floor supports available.
    • 24 hour stockyard availability (contact for sizes available).
  • Hytrol – Model 25-LREZ (EZLogic) Heavy Duty

    The model 25-LREZ is a flat belt driven live roller conveyor designed for use where zero pressure accumulation, low elevation (12"), and close roller centers are required. Shown with optional floor supports.

    • Bed: 7-1/2" x 10ga. formed steel channel frame powder painted.
    • Rollers: 2-1/2"dia. x 11ga. unplated tread rollers spaced every 3" and
    • 1.9"dia. x 16ga. unplated pressure rollers spaced every 6".
    • Overall frame widths: 42", 44", 46", 48", 50", 52", 54", 64", 76", & 88".
    • Motor: 1 HP standard, 2 HP max.
    • Capacity (maximum load per linear foot of conveyor): 1000 lbs.
    • Maximum unit load: 4000 lbs.
    • Total load not to exceed rated capacities.
    • Accumulation zones: 60" long, standard air controlled. Other lengths available.
    • Low elevation.
    • Fixed floor supports available.
    • EZLogic Accumulation System.

  • Hytrol – Model ABEZ Medium Duty

    The model ABEZ is a horizontal live roller (flat belt driven) conveyor designed for applications that require accumulation of products without a build-up of line pressure. Singulation feature allows products to be easily removed from any location on conveyor.

    • Bed: 6-1/2" x 12ga formed steel, powder painted.
    • Rollers: 1.9"dia x 16ga galvanized rollers.
    • EZLogic accumulation module located in each zone.
    • Widths (overall): 18", 20", 22", 24", 26", 28", 30", 34", 36", 40", & 42".
    • Motor: 1/2 HP standard, 2 HP max.
    • Center drive standard.
    • Capacity (max load per linear foot): 150 lbs, no minimum load.
    • Adjustable floor supports available.
    • Accumulation zones: 12", 18", 24", 30", & 36" long air controlled.
    • Stockyard availability (contact for sizes available).
